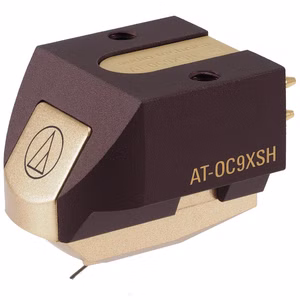

Audio Technica AT-OC9XSH MC Cartridge

Moving Coil, Low Output
* Incl. VAT excl. Shipping

Item number 9745

Secure
shopping
Faster
Shipping
Free advice
+49 (0) 2041 107021

The next Generation of the legendary OC9 cartridge series

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Shibata profile diamond originally design for Quadraphonic replay offers a depth of sound, combined with high frequency response that has to be heard to be believed.

  • Features nude Shibata stylus and boron cantilever with rich low frequency reproduction and high transient response
  • A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer

Shibata Stylus

Provides a beautiful mid-high range Shibata-signature sound and strong mid-range volume.

Easy mounting

Threaded holes in the cartridge body enable the cartridge to be mounted on to the headshell, or integral tonearm, with just two screws M2.6 – no nuts or bolts required.

Aluminium Body

Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction

Made in Japan

Produced in the Audio-Technica Fukui factory in Japan under strict quality control for precise manufacturing.
Product safety information
Manufacturer:
Contact: Email:
EU-Responsible Person:
Contact:
Model AT-OC9XSH
Mounting 1/2” centers / Threaded inserts
Frequency Response 20 to 47,000 Hz
Body Material Aluminium
Channel Separation 27 dB (1 kHz)
Output Channel Balance 1.0 dB (1 kHz)
Output Voltage 0.4 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
Stylus Shape Shibata
Stylus Size 2.7 x 0.26 mil
Stylus Construction Nude square shank
Cantilever 0.28 mm Ø nude boron
Coil Impedance 12 Ohms (1 kHz)
Coil Inductance 25 μH (1 kHz)
DC Resistance 12 Ohms
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 16 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
Recommended Load Impedance Min 100 Ohms
Cartridge Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included 1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
