Audio Technica
Audio Technica AT-VM95E/H Moving Magnet Cartridge incl. AT-HS6 Headshell
Item-ID: 9544
We will gladly inform you as soon as the article is available again.
I hereby confirm that I have read the Privacy policy.*AT-VM95E/H

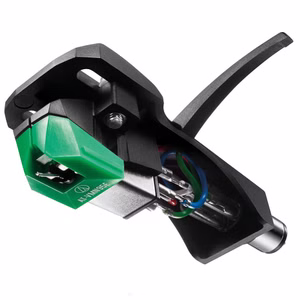

VM95 series Elliptical stereo cartridge on AT-HS6 Headshell
- AT-VM95E mounted on AT-HS6BK headshell
- The total set weight is 15.5g
- Assembled and tested in the Audio-Technica Factory in Fukui-Japan
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
Elliptical Bonded Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.
Preassembled With AT-HS6BK Headshell
The AT-VM95E cartridge is fitted onto the 9g aluminiumdie cast body headshell
| Model | AT-VM95E/H |
| Type | VM Stereo Dual Magnet |
| Mounting | 1/2” centres |
| Frequency Response | 20 - 22,000 Hz |
| Channel Separation | 20 dB (1 kHz) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Output Voltage | 4.0 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.8 - 2.2g (standard 2.0 g) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Static Compliance | 17 x 10 – 6 cm / dyne |
| Dynamic Compliance | 7 x 10 – 6 cm / dyne (100 Hz) |
| Wire Used for Coil | T.P. Copper |
| Recommended Load Impedance | 47,000 Ω |
| Recommended Load Capacitance | 100-200 pF |
| Weight | 15.5 g |
| Dimensions | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
| Replacement Stylus | AT-VMN95E |
