The next Generation of the legendary OC9 cartridge series

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. An excellent affordable introduction to the characteristics that is moving coil.

Features bonded Elliptical stylus and aluminium cantilever
A neodymium magnet and pure iron yoke provides increased magnetic energy
Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible

Elliptical Bonded Stylus

Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

Easy mounting

Threaded holes in the cartridge body enable the cartridge to be mounted on to the headshell, or integral tonearm, with just two screws M2.6 – no nuts or bolts required.

Aluminium Body

Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction

Made in Japan

Produced in the Audio-Technica Fukui factory in Japan under strict quality control for precise manufacturing.

Angaben zur Produktsicherheit

Hersteller:

Kontakt: E-Mail:

EU-Verantwortliche Person:

Kontakt:

Model	AT-OC9XEB
Befestigung	1/2” centers / Threaded inserts
Frequenzbereich	20 to 30,000 Hz
Material d. Gehäuses	Aluminium
Kanaltrennung	25 dB (1 kHz)
Kanalbalance am Ausgang	1.5 dB (1 kHz)
Ausgangsleistung	0.32 mV (at 1 kHz, 5 cm/sec)
Vertikaler Abtastwinkel	20 degrees
Vertikaler Auflagekraftbereich	1.8 to 2.2 g (standard 2.0 g)
Nadelschliff	Elliptical Bonded
Nadelabmessungen	0.3 x 0.7 mil
Schaftform der Nadel	Bonded round shank
Nadelträger	Aluminium pipe
Spulenimpedanz	12 Ohms (1 kHz)
Spuleninduktivität	25 μH (1 kHz)
DC Widerstand	12 Ohms
Statische Nadelnachgiebigkeit	20 x 10 – 6 cm / dyne
Dynamische Nadelnachgiebigkeit	9 x 10 – 6 cm / dyne (100 Hz)
Anschlusspins	Brass
Spulendraht	PCOCC (Copper by Ohno Continuous Casting process.)
Empfohlene Lastimpedanz	Min 100 Ohms
Gewicht	7.6 g
Abmessungen	17.3 (H) x 16.8 (W) x 25.7 (L) mm
Beiliegendes Zubehör	1 non magnetic screw driver, 1 brush; 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector

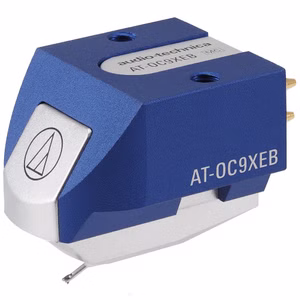

Audio Technica AT-OC9XEB MC Tonabnehmer
