Ortofon
Ortofon Concorde MkII DIGITAL - TWIN
Artikel-ID: 10299
Gerne informieren wir Sie, sobald der Artikel wieder verfügbar ist.
Hiermit bestätige ich, dass ich die
Datenschutzerklärung
gelesen habe.*
* inkl. MwSt. zzgl. Versandkosten außerhalb von Deutschland
Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding
- At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
- This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
- Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.
Concorde DIGITAL is available in following configurations:

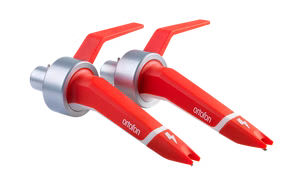

- Concorde TWIN (two Concorde MkII DIGITAL cartridges with preinstalled styli), supplied in Flight case
- Concorde Single (one Concorde MkII DIGITAL cartridge with preinstalled stylus)
Technical Data
- Output voltage at 1000Hz, 5cm/sec. - 10 mV
- Channel balance at 1kHz - 1 dB
- Channel separation at 1kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-18.000 Hz
- Tracking ability at 315 Hz at recommended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Spherical R 18 μm
- Tracking force range - 3 - 5 g
- Tracking force recommended - 4 g
- Cartridge weight - 18,5 g
